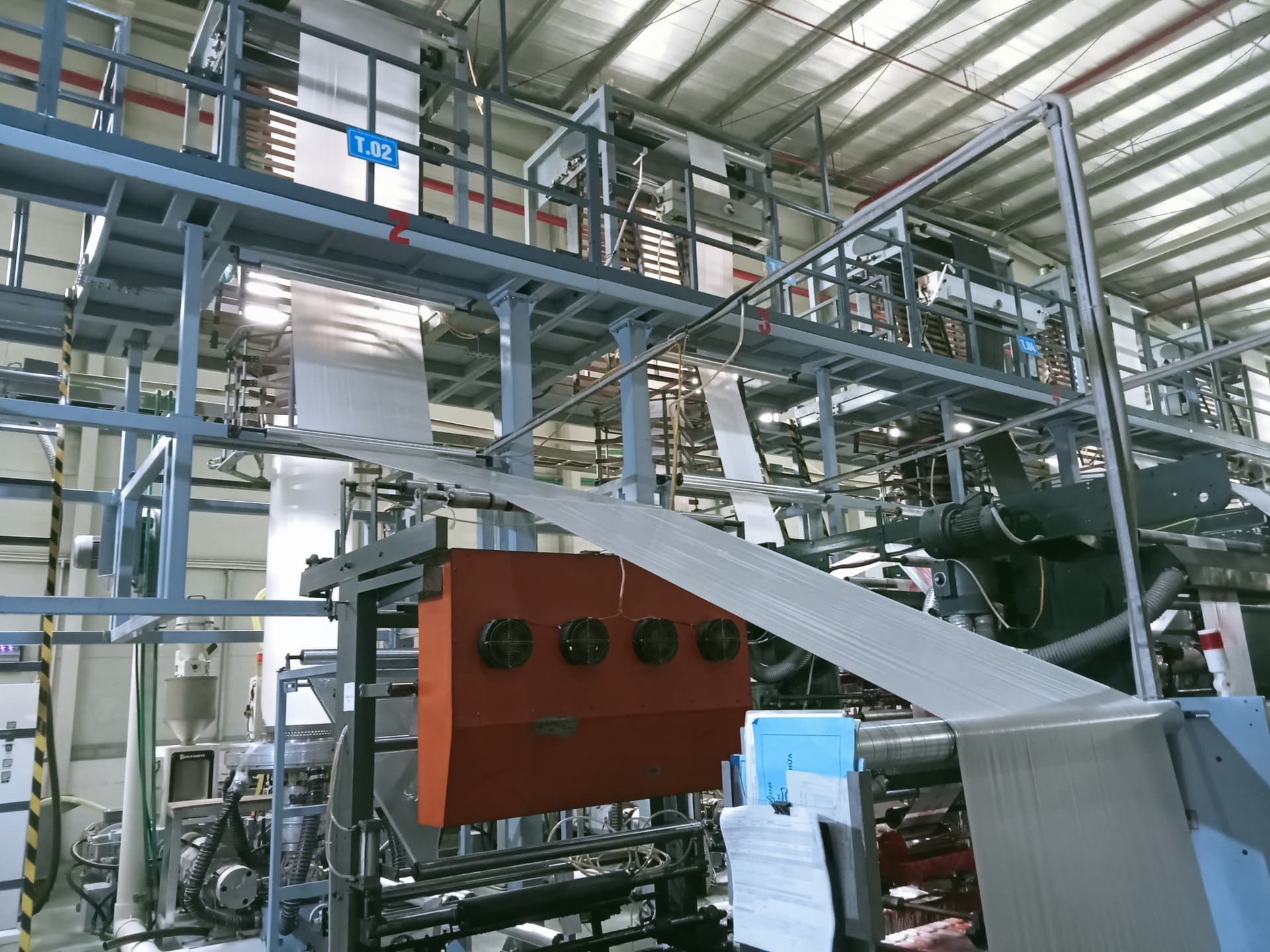

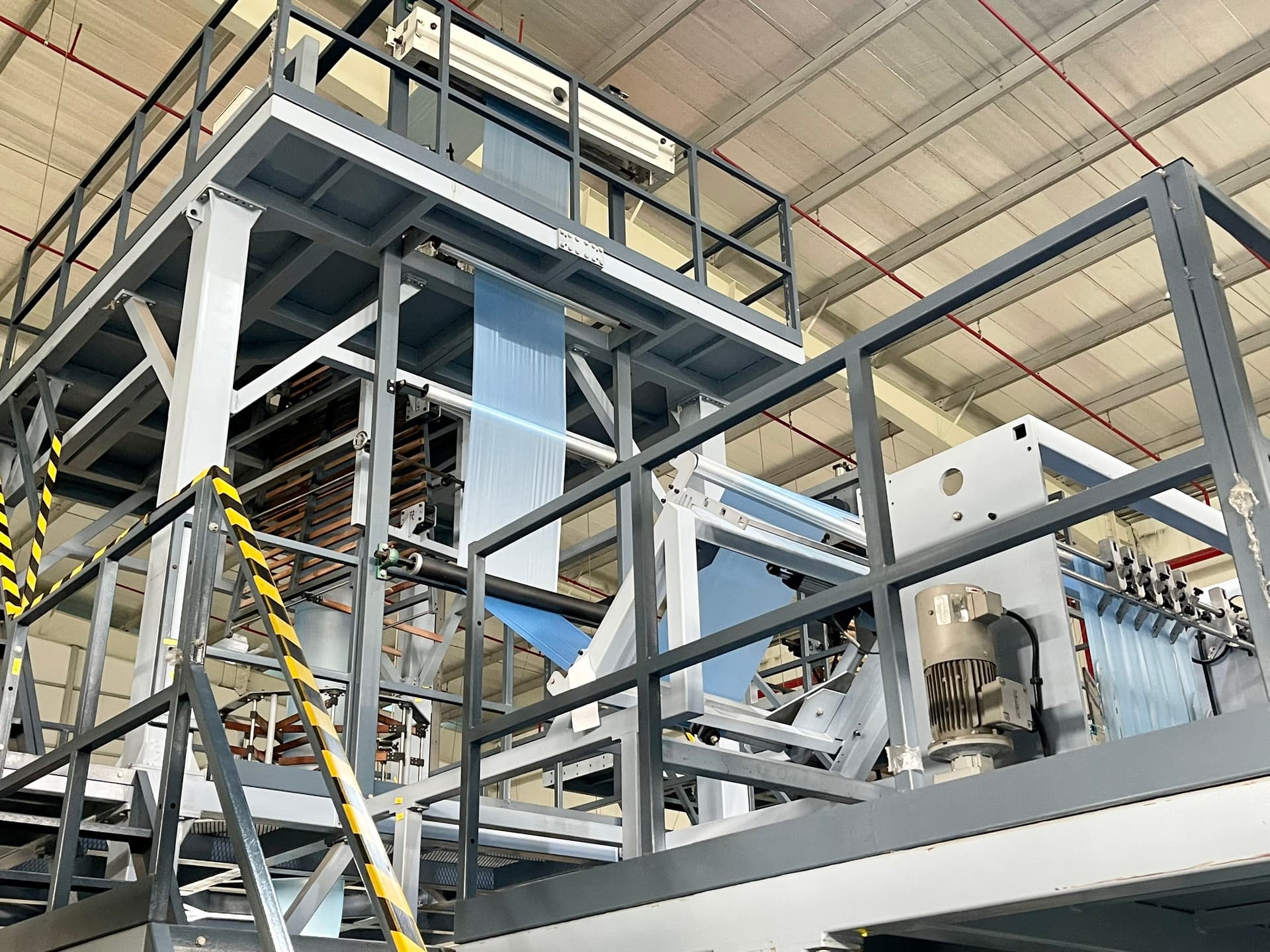

1. ABC Layer Blowing Machine

| Application | Suitable Material | Advantage | Screw Diameter (mm) | Film Width (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|---|
| kg/h | kg/Day | kg/Month | |||||||
| T-shirt bags,  Shopping bags, Food bags, Garbage bags, Agriculture film, Builder/Construction film, PE liner, etc.  | HDPE / LDPE / LLDPE / Metallocene / EVA / PA | - Auto smart air ring - Auto profile control system - Touch panel control system - Auto layer output percentage control system - Inter bubble cooling system - Air cooler blown film cooler  | 55/65/55 | 800-1350 | 20-100 (depending on the material & film size) | 2 | 200 | 8,800 | 228,800 |
2. ABA Blowing Machine


| Application | Suitable Material | Advantage | Screw Diameter (mm) | Film Width (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|---|
| kg/h | kg/Day | kg/Month | |||||||
| T-shirt bags,  Shopping bags, Food bags, Garbage bags, etc.  | HDPE / MDPE / HDPE+LLDPE (LDPE by request) | - Auto loader - Embossing roller - Corona treatment - Air shaft  | 55x2 | 450-1350 | 10-100 (depending on the material & film size) | 2 | 100 | 4,400 | 114,40 |
| 45/50 | 250-1000 | 4 | 100 | 88,00 | 228,800 | ||||
| 50/50 | 450-1000 | 9 | 120 | 23,760 | 617,760 | ||||
| 55/55 | 650-1350 | 7 | 120 | 18,840 | 480,480 | ||||
3. High Speed Mono Layer Blowing Machine

| Application | Suitable Material | Advantage | Screw Diameter (mm) | Film Width (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|---|
| kg/h | kg/Day | kg/Month | |||||||
| T-shirt bags,  Shopping bags, Food bags, Garbage bags, etc.  | HDPE / LDPE / LLDPE / Metallocene / EVA / PA | - Auto loader - Embossing roller - Corona treatment - Air shaft  | 55 | 180-500 | 8-100 (depending on the material & film size) | 18 | 50 | 19,800 | 514,800 |
4. Draw tape bag on roll- converting system


Advantage:
| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| Interleaved/ Perforated Draw Tape Bag On Roll | HDPE / MDPE / HDPE+LLDPE (LDPE by request) | - 400-1000 | - 450-1250 | 20-100 (depending on the material & film size) | 10 | 90 | 1,214,400 | 778,940 |

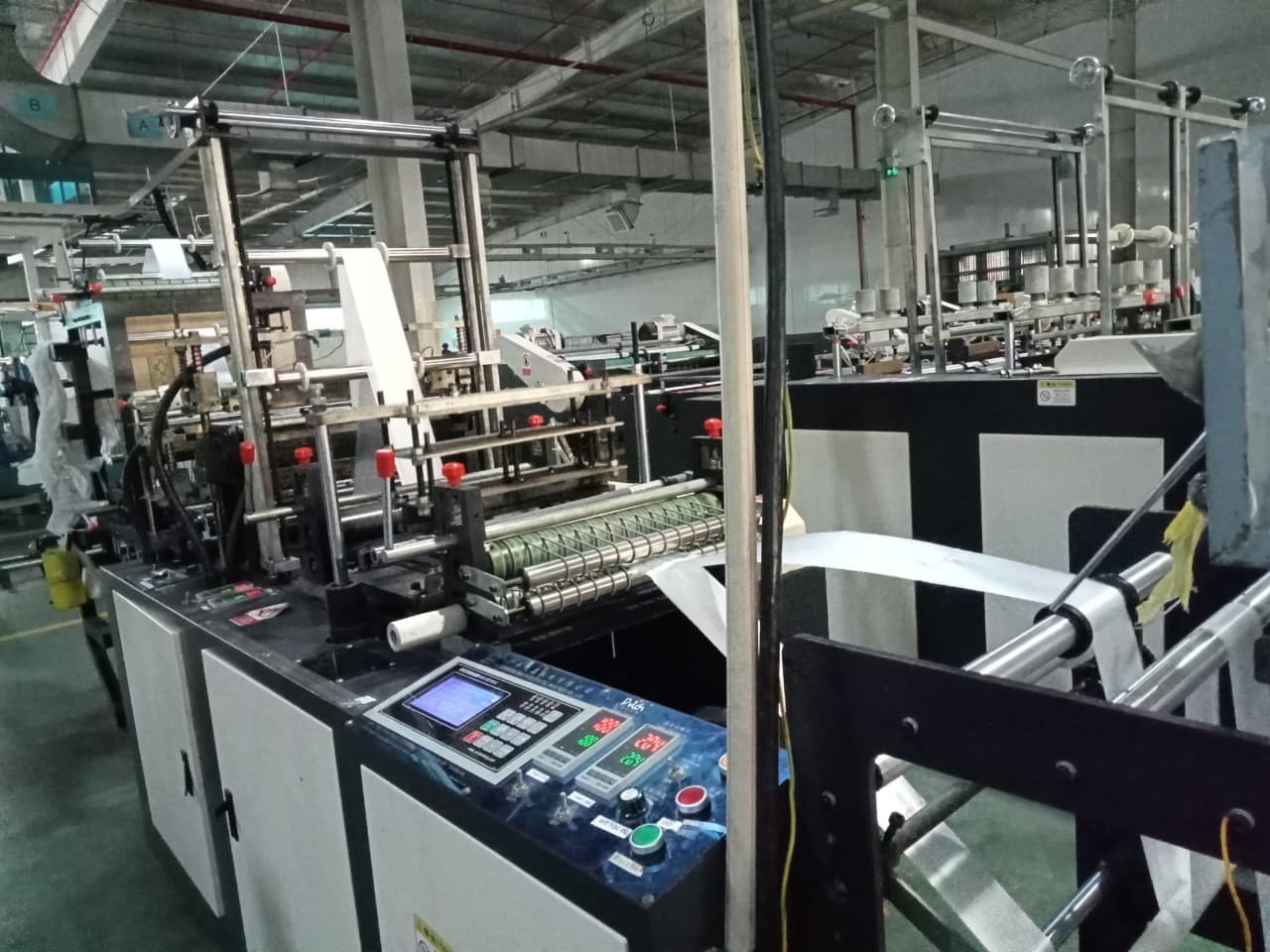

5. Star Seal/S type/T type Bag Making Machine

| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| Star Seal/S type/T type Bag | HDPE / MDPE / HDPE+LLDPE (LDPE by request) | - 50-300 | - 50-1500 | - 8-160 (depending on the material & film size) | 50 | 70 | 240,240,000 | 197,937,600 |

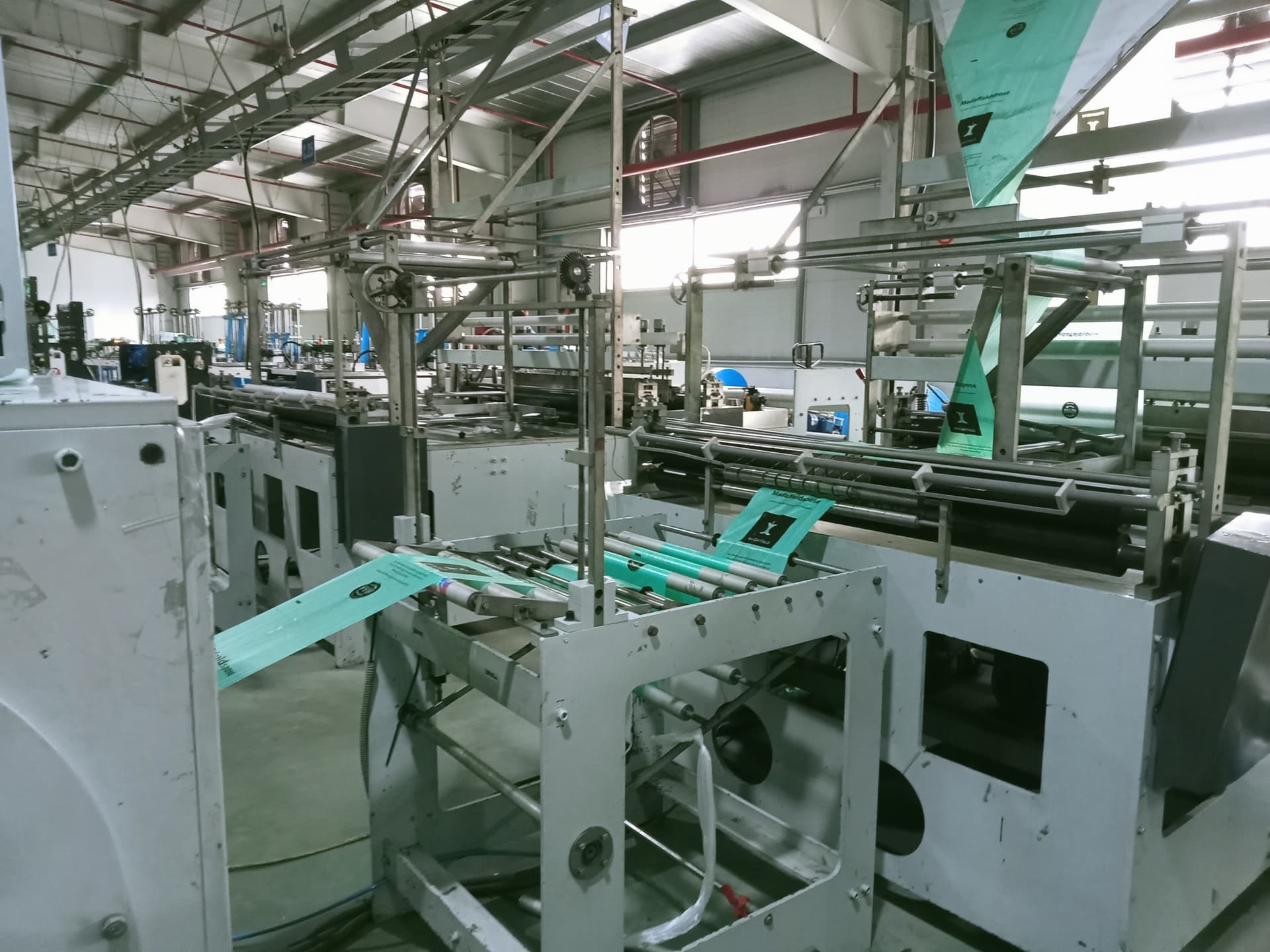

6. T-shirt cutting machine

| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| T-shirt | HDPE / MDPE / HDPE+LLDPE (LDPE by request) | -400-1000 | - 450-1250 | 20-100 (depending on the material & film size) | 10 | 90 | 1,214,400 | 778,940 |
7. C Fold Bag Making Machine

| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| C-Fold Bags | HDPE / MDPE / HDPE+LLDPE (LDPE by request) | - 400-1000 | - 450-1250 | 20-100 (depending on the material & film size) | 4 | 50 | 264,000 | 34,320 |
8. Plastic bag making machine with core bag on roll

| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| Plastic bag on roll with paper core | HDPE / MDPE / HDPE+LLDPE (LDPE by request) | - 400-1000 | - 450-1250 | 20-100 (depending on the material & film size) | 4 | 100 | 528,000 | 115,315 |
9. T-shirt C-Fold Bag Making Machine

| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| T-shirt C-fold | HDPE / MDPE / HDPE+LLDPE (LDPE by request) | - 400-1000 | - 450-1250 | 20-100 (depending on the material & film size) | 3 | 100 | 792,000 | 102,960 |
10. Disposable plastic gloves Making


| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| Disposable PE Gloves | HDPE / LDPE | - 400-1000 | - 450-1250 | 20-100 (depending on the material & film size) | 22 | 50 | 1,452,000 | 45,302 |

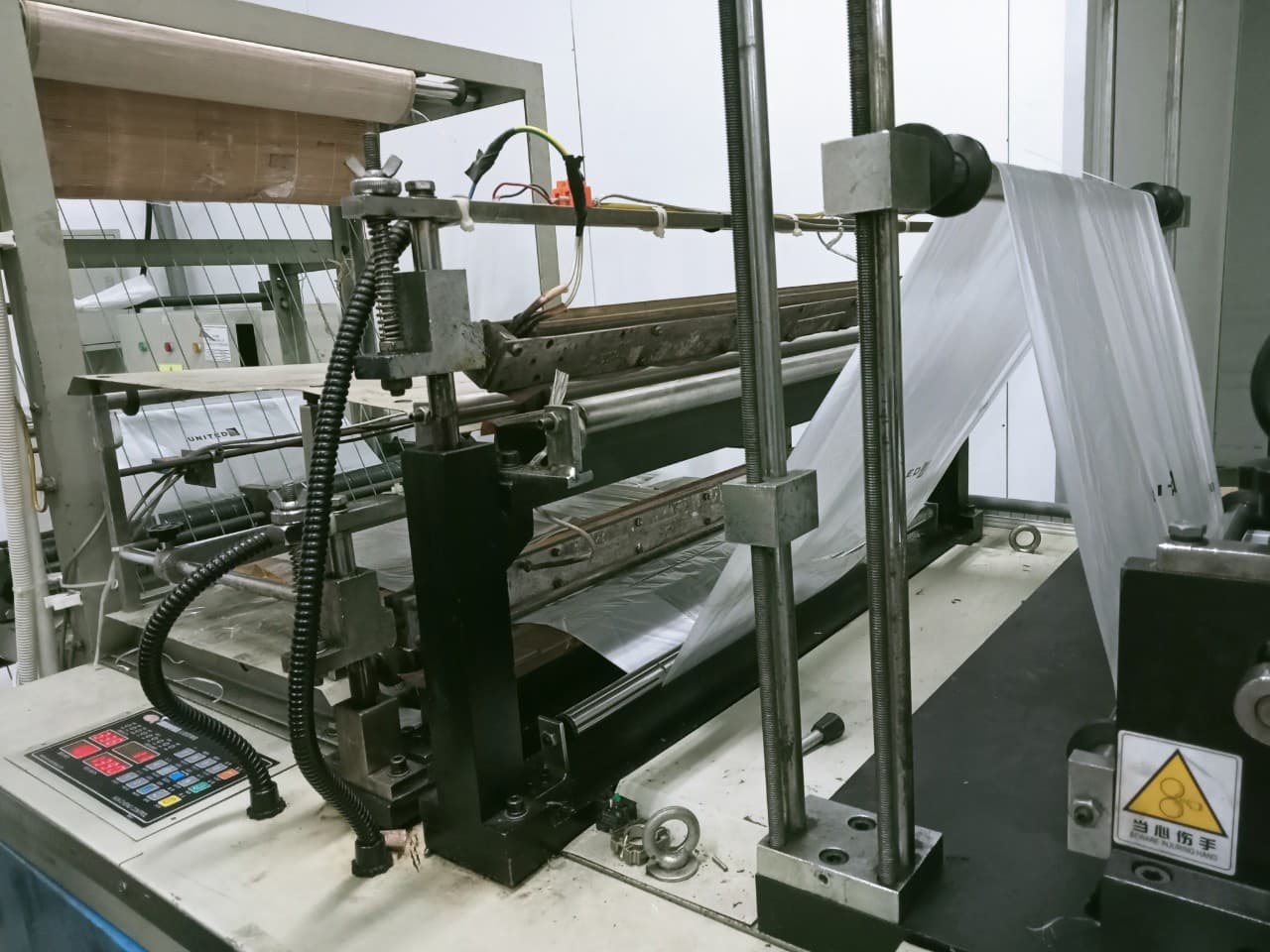

11. Flat Bag Making Machine

| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| Flat bags/ Apron plastic | HDPE / MDPE / HDPE+LLDPE (LDPE by request) | - 400-1000 | - 450-1250 | 20-100 (depending on the material & film size) | 5 | 40 | 264,000 | 48,480 |
12. Zipper Film Blowing Machine

| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| Zipper Resealable Bags  Small - Medium - Large Size  | LDPE | 450- 750 | 55-850 | 40-150 (depending on the material & film size) | 3 | 15 | 1,932 | 50,232 |

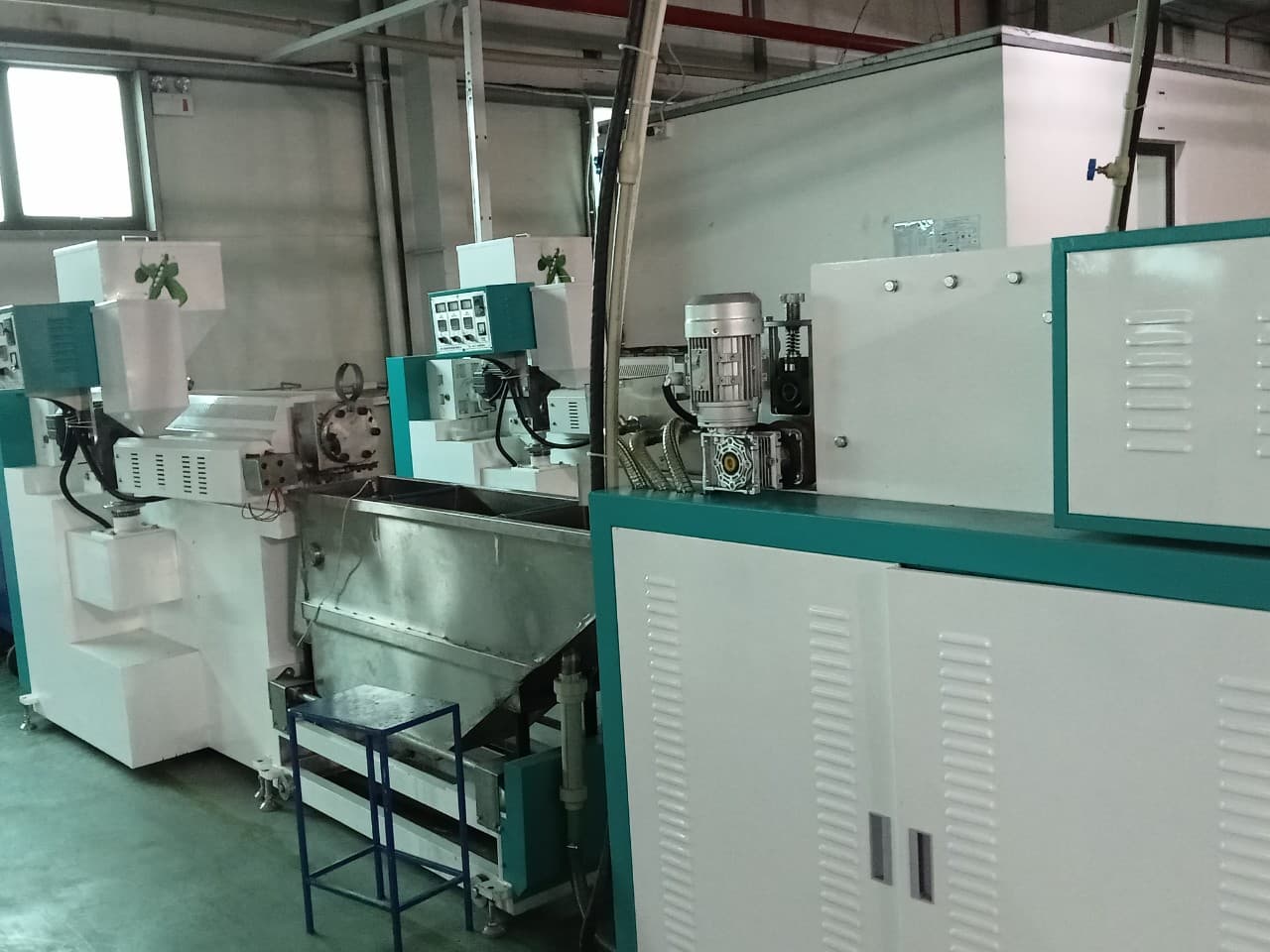

13. Plastic zipper extruder machine


| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| Zipper Resealable Bags | LDPE | 450-750 | 55-850 | 40-150 (depending on the material & film size) | 2 | 50 | 1,152 | 29,952 |
14. 500H zipper bag making machine

| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| Zipper Resealable Bags | LDPE | 450-750 | 55-850 | 40-150 (depending on the material & film size) | 4 | 2 | 2,208 | 57,408 |
15. 600INS sealed zipper bag making machine with auto collec ting table

| Application | Suitable Material | Film Width (mm) | Film Length (mm) | Film Thickness (mic) | Quantity (psc) | Output (kg/h) | ||
|---|---|---|---|---|---|---|---|---|
| m/min | m/Day | m/Month | ||||||
| Zipper Resealable Bags | LDPE | 450-750 | 55-850 | 40-150 (depending on the material & film size) | 4 | 3 | 6,336 | 164,736 |
